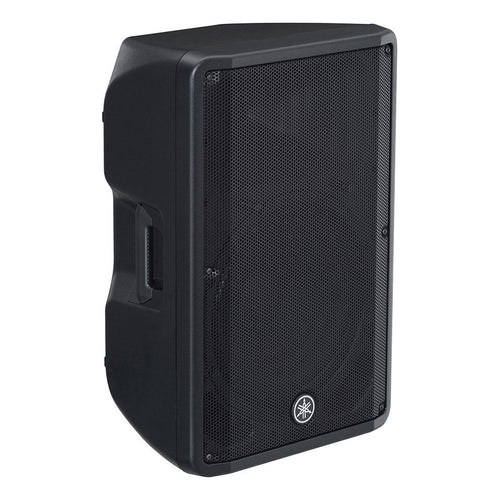

YAMAHA DBR15 15" 2-Way Powered Loudspeaker
Features / Specifications
Speaker type - 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) - 50Hz – 20kHz
Nominal coverage
H - 90°
V - 60°
Components
LF - Diameter:15" cone, Voice Coil:2.5", Magnet: Ferrite
HF - Diaphragm:1.4", Type: 1" throat compression driver, Magnet: Ferrite
Crossover - 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power - Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) - 132dB SPL
I/O connectors - INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors - D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation - Fan cooling, 4 speeds
Power requirements - 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption - 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material - Plastic
Finish - Black
Handle - Side x 2
Flying and mounting hardware - Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket - 35mm (Bottom x 1)
Dimensions
W - 455mm (17.9")
H - 700mm (27.6")
D - 378mm (14.9")
Net weight - 19.3 kg (42.6 lbs)
Accessories - BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
Speaker type - 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) - 50Hz – 20kHz
Nominal coverage
H - 90°
V - 60°
Components
LF - Diameter:15" cone, Voice Coil:2.5", Magnet: Ferrite
HF - Diaphragm:1.4", Type: 1" throat compression driver, Magnet: Ferrite
Crossover - 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power - Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) - 132dB SPL
I/O connectors - INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors - D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation - Fan cooling, 4 speeds
Power requirements - 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption - 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material - Plastic
Finish - Black
Handle - Side x 2
Flying and mounting hardware - Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket - 35mm (Bottom x 1)
Dimensions
W - 455mm (17.9")
H - 700mm (27.6")
D - 378mm (14.9")
Net weight - 19.3 kg (42.6 lbs)
Accessories - BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
$949.00
YAMAHA DBR15 15" 2-Way Powered Loudspeaker—
$949.00
